TP-LINK TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case

TP-LINK TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case

The TP-LINK TL-SG108PE is an excellent solution for expanding your wired network, designed to offer high-speed and reliable connectivity.

Key Features:

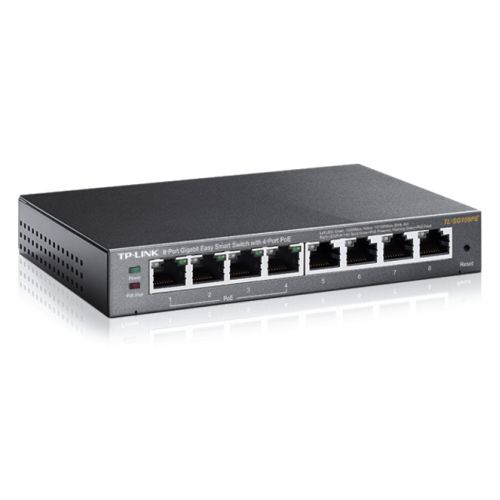

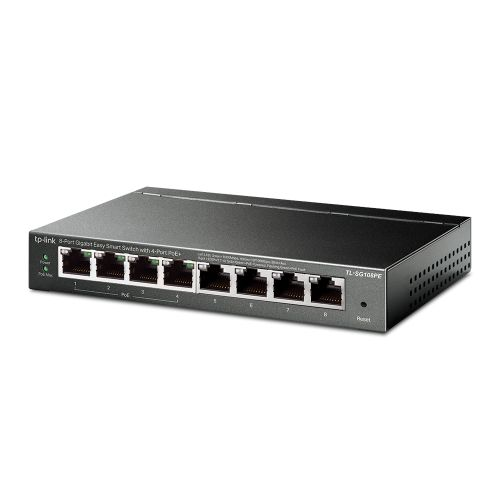

• 8 Gigabit Ports: Eight 10/100/1000Mbps RJ45 ports for seamless data transfer.

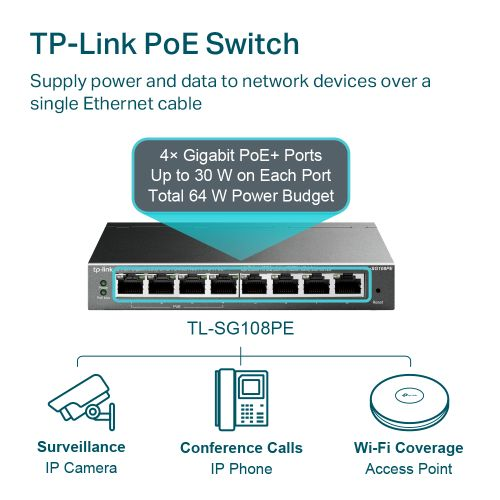

• 4 PoE+ Ports: Four 802.3af/at PoE+ ports providing up to 30W per port, allowing data and power transfer over a single cable.
• 64W PoE Budget: Total PoE power up to 64W across all PoE ports, ideal for multiple applications.
• Advanced Network Management: Offers network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery.
• Easy Setup: Simple plug-and-play connectivity with web-based user interface and Easy Smart Configuration Utility for configuration.
• Fanless Design: Lowers energy consumption and eliminates operating noise for a quiet environment.
• Durable Construction: High-quality metal casing ensures long product life and protects interior components.

Applications:

The TL-SG108PE is fully compatible with PoE devices such as IP cameras, access points, and IP phones, as well as non-PoE devices like PCs, printers, and IPTV. It's ideal for surveillance, offices, dormitories, and small businesses.

Enhanced Network Performance:

• QoS for Lag-Free Experience: Ensures smooth traffic for latency-sensitive applications like voice and video.
• IGMP Snooping for Multicast Optimization: Improves network efficiency for applications such as IPTV.
• VLAN Security: Enhances security and performance by dividing the network into smaller groups.
• PoE Auto Recovery: Automatically detects and reboots unresponsive PoE devices to maintain stability.
• Intelligent Power Management: Prevents power overload by cutting power to lower priority ports, ensuring stable supply to high-priority ports.
• PD Detection: Automatically detects required PoE power for connected devices, protecting non-PoE equipment.

Additional Features:

• Compact Desktop Design
• Wall-Mounting Options

Specifications:
- Switching Capacity : 16 Gbps
- Warranty : Limited Lifetime
- Dimensions : (WxDxH) 158 x 101 x 25 mm
- Max RJ45 Transfer Rate : 10/100/1000 Mbps
- PoE Ports (RJ45) : Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 64W
- Standards and Protocols : IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
- VLAN : Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
- Management : Web-based GUI Easy Smart Configuration Utility
- #Hide#POE : Yes
- Mac Address Table : 4K
- Quality of Service : Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control

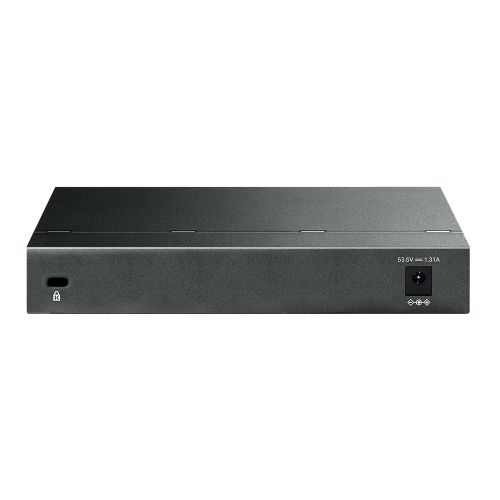

- Power Supply : External Power Adapter (Output: 53.5 VDC/1.31 A) Consumption: 5.41 W (220V/50Hz with no PD connected) 74.27 W (220V/50Hz with 64 W PD connected)
- Package Type : Retail
- Package Contents : TL-SG108PE Power Adapter Installation Guide Rubber Feet
- Rackmountable : No
- Number of Ports : 8
- Layer Features : L2: IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery
- Interface(s) : 8 x 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
- Packet Forwarding Rate : 11.9 Mpps
- Additional Features : See Overview
- Environment : Operating Temperature: 0–40°C (32–104°F) Storage Temperature: -40–70°C (-40–158°F) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
- Package Weight : 0.9100 kg
- Jumbo Frame : 16 KB
- Managed : Smart
